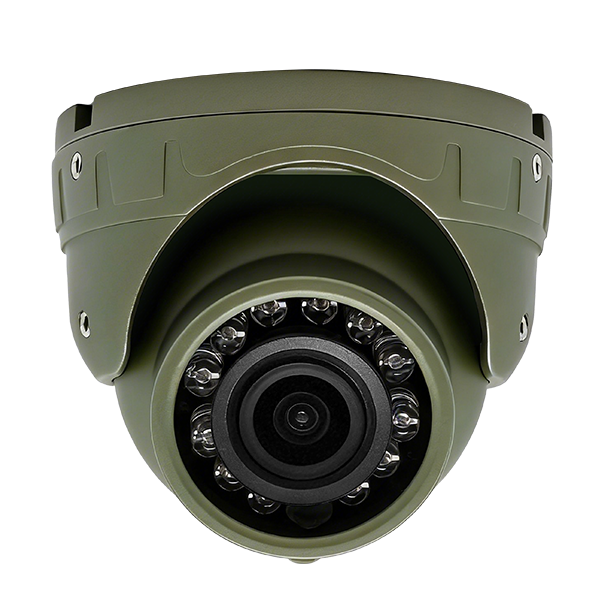

C1DH100FA-C | C1DH203FA-C

720P/2MP Indoor HD Analog Mini Car Camera Front View / Rear View

Front/Rear View · Low Light Sensitivity · DWDR · 3D/2D DNR · ICR Day/Night · UTC Control · Multi-language OSD · AHD/TVI/CVI/CVBS · Metal Housing · 4P Aviation Connector · Wide Temperature · Plug & Play · Vehicle Grade
    Products
    · 720P/2MP Indoor Mini Car Camera Front View / Rear View
    · 3.6mm Fixed Lens (2.8mm optional).
    · Delivers sharp 720P HD analog video for reliable vehicle monitoring.
    · Outstanding night vision with 12 IR LEDs, supporting 10–15m infrared night viewing.
    · Advanced image enhancement with DWDR, 3D/2D DNR and ICR day/night switch for clear footage even in backlight and complex scenes.
    · Multi-standard video output (AHD/TVI/CVI/CVBS) switchable via UTC, ensuring wide compatibility with vehicle DVR systems.
    · User-friendly control with OSD menu and UTC function, plus multi-language support for easy operation.
    · Robust vehicle-rated design with metal casing and 4P vehicle aviation connector for stable connection.
    · Wide operating temperature range from -20°C to +50°C, ensuring stable performance in various environments.
    · True plug-and-play design for quick installation and effortless setup without complicated configuration.
    Model Number C1DH100F-C
    Camera
    Image Sensor 1/3.02’’Color CMOS Image Sensor
    Max.Resolution 720P
    Min. Illumination 0.01Lux@(F1.6,AGC ON),0LUX with IR
    Electronic Shutter Auto
    Video Standard PAL/NTSC
    Synchronization Inter-Sync
    Lens
    Focal Length 3.6mm @F1.6
    Lens Resolution 3MP
    Illuminator
    Light Distance 10-15m
    IR LEDS 12pcs Infrared LEDs
    Day/Night Mode Auto/B&W
    Image Settings Contrast/sharpness/saturation/DNR
    Frame Rate 720P@25fps/30fps
    WDR Digital WDR
    UTC Support
    OSD Support Support
    Noise Reduction 3D DNR/2D DNR
    White Balance Auto/Manual
    Exposure Brightness/exposure mode/gain control
    Video Output AHD/TVI/CVI/CVBS Switch by UTC
    Language ENGLISH/Chinese/Tradition Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues
    Audio
    Audio Input No
    Audio Output No
    Interface
    Video Output 1 x 4P Vehicle Aviation Connector
    General
    Type Metal Housing
    Power Supply 12V DC±10%
    Lightning Protection Support
    Power Consumption Max 3W
    Working Humidity Relative humidity less than 90%
    Operating Temperature -20°C to [$add]50°C (-14°F to 122°F)
    Storage Temperature -40°C to [$add]60°C (-40°F to 140°F)
    Model Number C1DH100FA-C
    Camera
    Image Sensor 1/3.02’’Color CMOS Image Sensor
    Max.Resolution 720P
    Min. Illumination 0.01Lux@(F1.6,AGC ON),0LUX with IR
    Electronic Shutter Auto
    Video Standard PAL/NTSC
    Synchronization Inter-Sync
    Lens
    Focal Length 3.6mm @F1.6
    Lens Resolution 3MP
    Illuminator
    Light Distance 10-15m
    IR LEDS 12pcs Infrared LEDs
    Day/Night Mode Auto/B&W
    Image Settings Contrast/sharpness/saturation/DNR
    Frame Rate 720P@25fps/30fps
    WDR Digital WDR
    UTC Support
    OSD Support Support
    Noise Reduction 3D DNR/2D DNR
    White Balance Auto/Manual
    Exposure Brightness/exposure mode/gain control
    Video Output AHD/TVI/CVI/CVBS Switch by UTC
    Language ENGLISH/Chinese/Tradition Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues
    Audio
    Audio Input Support, built in mircophone
    Audio Output No
    Interface
    Video Output 1 x 4P Vehicle Aviation Connector
    General
    Type Metal Housing
    Power Supply 12V DC±10%
    Lightning Protection Support
    Power Consumption Max 3W
    Working Humidity Relative humidity less than 90%
    Operating Temperature -20°C to [$add]50°C (-14°F to 122°F)
    Storage Temperature -40°C to [$add]60°C (-40°F to 140°F)
    Model Number C1DH203F-C
    Camera
    Image Sensor 1/3.02’’Color CMOS Image Sensor
    Max.Resolution 2MP 1920(H)×1080(V)
    Min. Illumination 0.01Lux@(F1.6,AGC ON),0LUX with IR
    Electronic Shutter Auto
    Video Standard PAL/NTSC
    Synchronization Inter-Sync
    Lens
    Focal Length 3.6mm @F1.6
    Lens Resolution 3MP
    Illuminator
    Light Distance 10-15m
    IR LEDS 12pcs Infrared LEDs
    Day/Night Mode Auto/B&W
    Image Settings Contrast/sharpness/saturation/DNR
    Frame Rate 1920(H)×1080(V)@25fps/30fps
    WDR Digital WDR
    UTC Support
    OSD Support Support
    Noise Reduction 3D DNR/2D DNR
    White Balance Auto/Manual
    Exposure Brightness/exposure mode/gain control
    Video Output AHD/TVI/CVI/CVBS Switch by UTC
    Language ENGLISH/Chinese/Tradition Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues
    Audio
    Audio Input No
    Audio Output No
    Interface
    Video Output 1 x 4P Vehicle Aviation Connector
    General
    Type Metal Housing
    Power Supply 12V DC±10%
    Lightning Protection Support
    Power Consumption Max 3W
    Working Humidity Relative humidity less than 90%
    Operating Temperature -20°C to [$add]50°C (-14°F to 122°F)
    Storage Temperature -40°C to [$add]60°C (-40°F to 140°F)
    Model Number C1DH203FA-C
    Camera
    Image Sensor 1/3.02’’Color CMOS Image Sensor
    Max.Resolution 2MP 1920(H)×1080(V)
    Min. Illumination 0.01Lux@(F1.6,AGC ON),0LUX with IR
    Electronic Shutter Auto
    Video Standard PAL/NTSC
    Synchronization Inter-Sync
    Lens
    Focal Length 3.6mm @F1.6
    Lens Resolution 3MP
    Illuminator
    Light Distance 10-15m
    IR LEDS 12pcs Infrared LEDs
    Day/Night Mode Auto/B&W
    Image Settings Contrast/sharpness/saturation/DNR
    Frame Rate 1920(H)×1080(V)@25fps/30fps
    WDR Digital WDR
    UTC Support
    OSD Support Support
    Noise Reduction 3D DNR/2D DNR
    White Balance Auto/Manual
    Exposure Brightness/exposure mode/gain control
    Video Output AHD/TVI/CVI/CVBS Switch by UTC
    Language ENGLISH/Chinese/Tradition Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues
    Audio
    Audio Input Support, built in mircophone
    Audio Output No
    Interface
    Video Output 1 x 4P Vehicle Aviation Connector
    General
    Type Metal Housing
    Power Supply 12V DC±10%
    Lightning Protection Support
    Power Consumption Max 3W
    Working Humidity Relative humidity less than 90%
    Operating Temperature -20°C to [$add]50°C (-14°F to 122°F)
    Storage Temperature -40°C to [$add]60°C (-40°F to 140°F)
